ZPU5-T2-40PV Type 2 DC SPD
ZPU5-T2-40PV Type 2 DC SPD for solar PV systems with Imax 40kA, In 20kA, pluggable design, and 600VDC, 1000VDC, 1500VDC options.

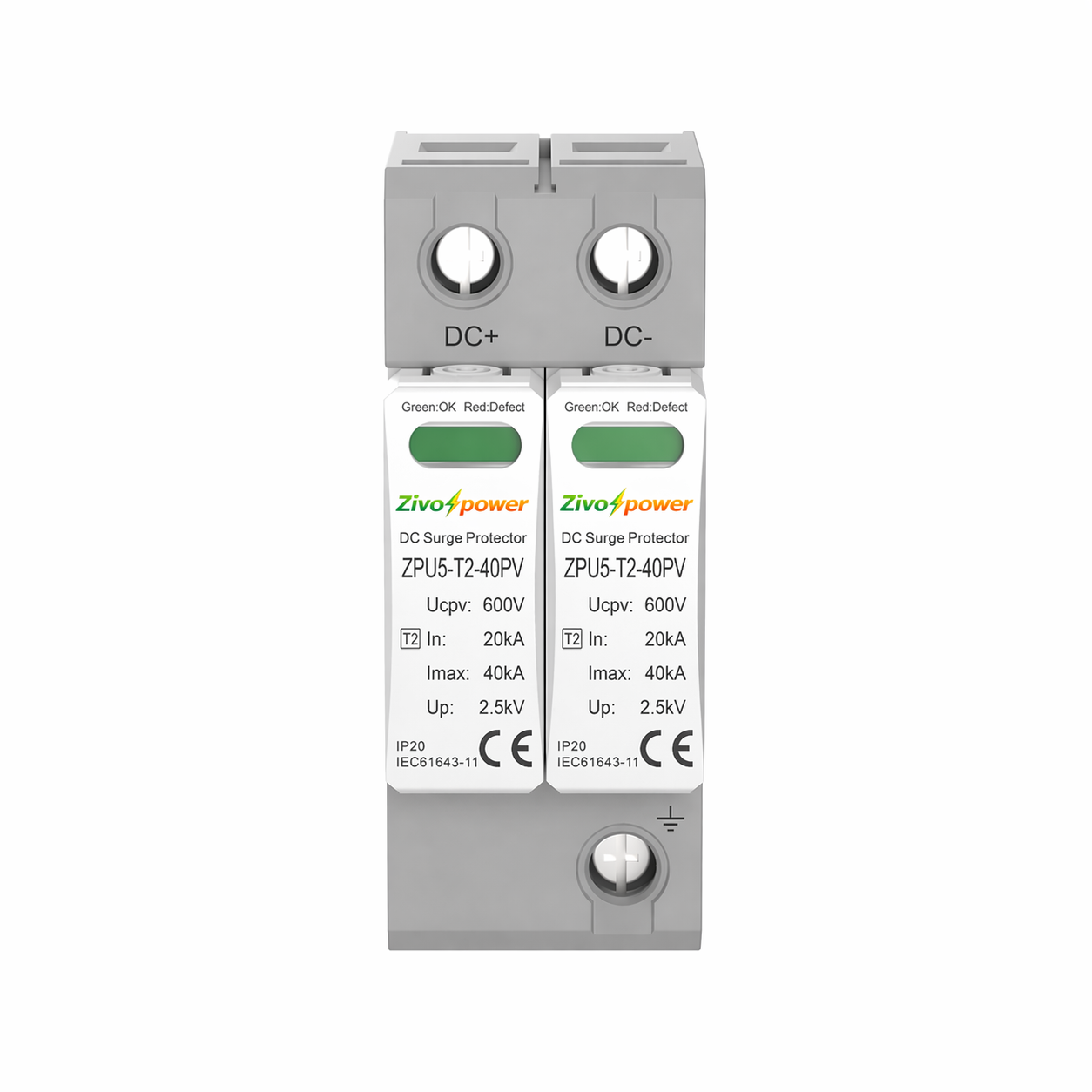

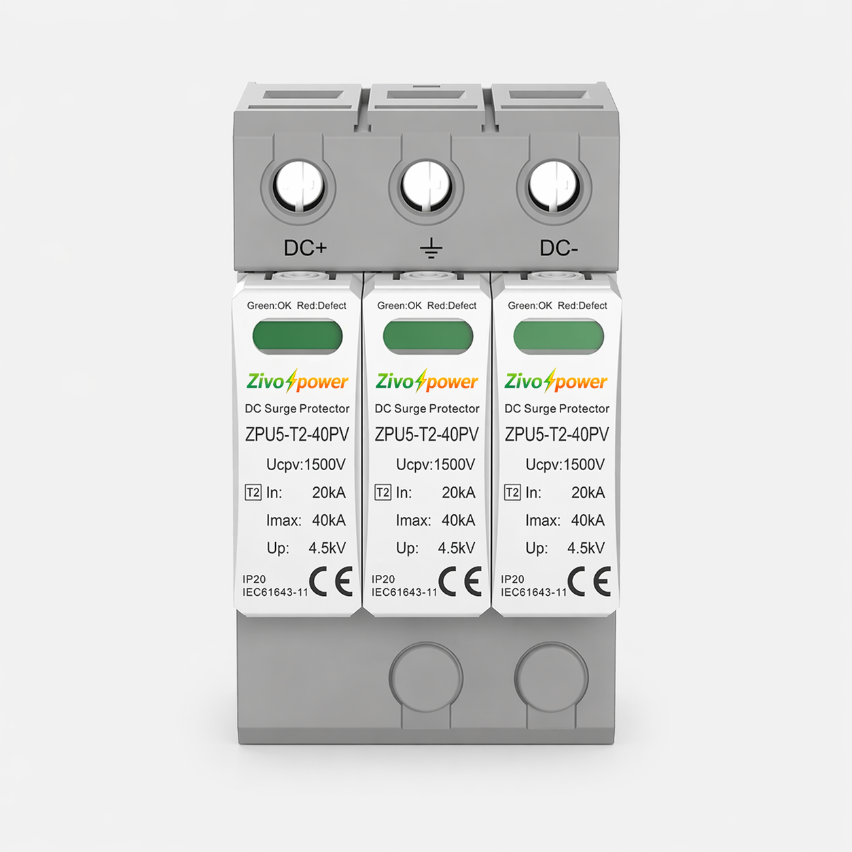

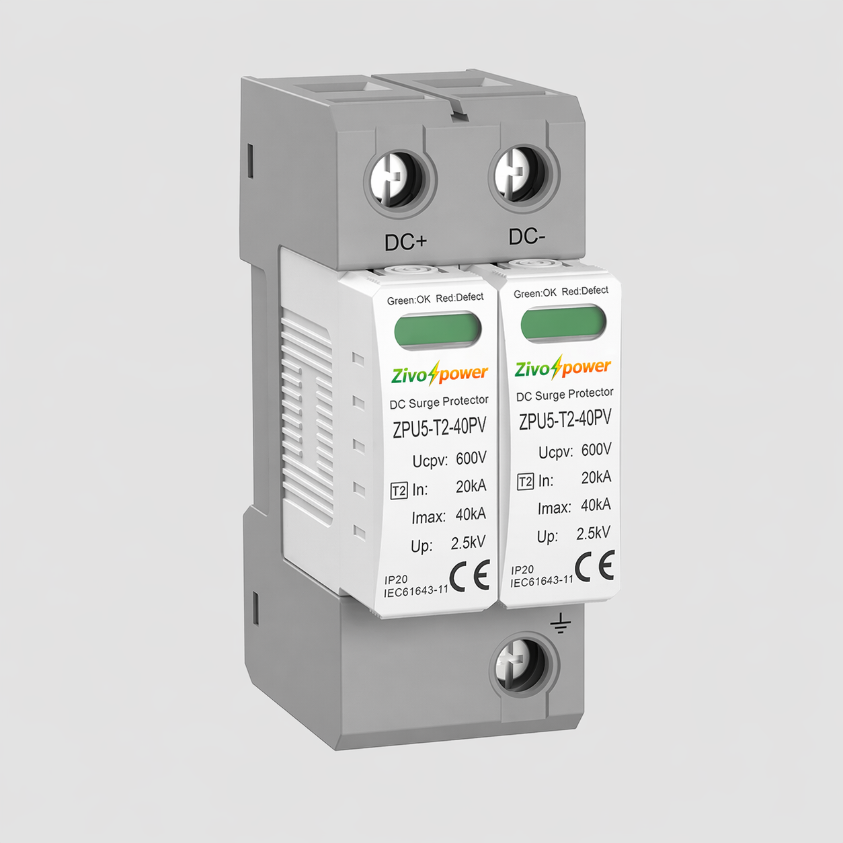

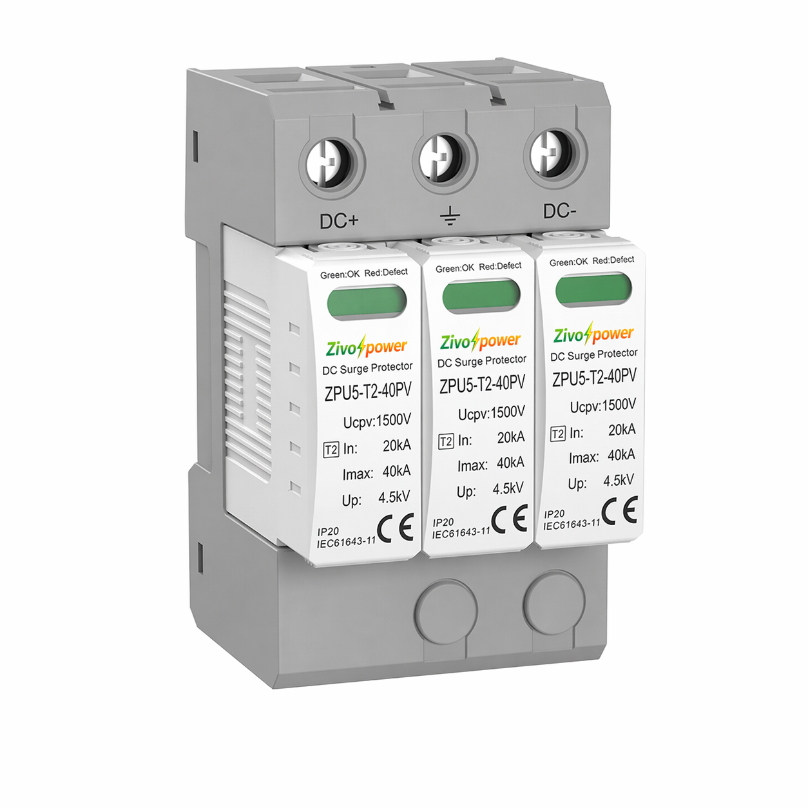

ZPU5-T2-40PV Type 2 DC SPD for Solar PV System
ZPU5-T2-40PV Type 2 DC surge protective device for photovoltaic systems, with Imax 40kA, In 20kA, pluggable design, and system voltage options of 600VDC, 1000VDC, and 1500VDC.
Product Overview
Zivopower ZPU5-T2-40PV Type 2 DC SPD is specially designed for photovoltaic power supply systems that require reliable protection against lightning surge and transient overvoltage on the DC side. This product is a pluggable multi-pole Type 2 / Class II PV surge protective device, intended to protect terminal devices in a solar PV system, such as solar panels, combiner boxes, and inverters.
The ZPU5-T2-40PV must be installed in parallel on the DC networks to be protected and provides both common-mode and different-mode protection. For more effective system protection, it is recommended to install the device at both ends of the DC power supply line, including the solar panel side and the inverter/converter side, especially when the cable routing is external and long.
With maximum continuous operating voltage options up to 1500VDC, nominal discharge current of 20kA, maximum discharge current of 40kA, and fast response time of ≤25ns, this PV SPD is suitable for modern solar installations that require dependable DC surge protection performance and easy maintenance with a pluggable design.
Technical Specifications
| Item | Specification |
|---|---|
| Model | ZPU5-T2-40PV |
| SPD Classification According to IEC/EN61643-31 | T2 / Class II |
| Location of Use | String box, Inverter |
| Mode of Protection | (DC+)-PE, (DC-)-PE, (DC+)-(DC-) |
| Protective Elements | High Energy MOV |
| Maximum Continuous Operating DC Voltage Ucpv | 600V / 1000V / 1500V |
| Nominal Discharge Current (8/20μs) In | 20kA |
| Total Discharge Current (8/20μs) ITotal | 40kA |
| Maximum Discharge Current (8/20μs) Imax | 40kA |
| Voltage Protection Level (2P) Up | 2.6kV / 4.0kV / - |
| Voltage Protection Level (3P) Up | - / 4.0kV / 5.2kV |
| Response Time tA | ≤25ns |
| Operating Temperature Range Tu | -40℃ to +80℃ |
| Operating State / Fault Indication | Green/Red |
| Cross-section Area (Min.) / (Max.) | 4mm² / 35mm² |
| Mounting | 35 mm DIN Rail, EN 60715 |
| Enclosure Material | Thermal Plastic UL94-V0 |
| Degree of Protection | IP20 (built-in) |
| No. of Poles | 2P (2Mods), 3P (3Mods) |
| Housing | Pluggable Design |
Electrical Performance
| Performance Item | Description |
|---|---|
| Protection Function | Provides lightning surge and transient overvoltage protection for PV DC circuits |
| SPD Type | Type 2 / Class II DC surge protective device |
| System Voltage Range | Suitable for 600VDC, 1000VDC, and 1500VDC photovoltaic systems |
| Nominal Discharge Current | 20kA (8/20μs) |
| Total Discharge Current | 40kA (8/20μs) |
| Maximum Discharge Current | 40kA (8/20μs) |
| Voltage Protection Level | 2P: 2.6kV / 4.0kV / - ; 3P: - / 4.0kV / 5.2kV |
| Response Time | ≤25ns for fast surge response |
| Protection Mode | (DC+)-PE, (DC-)-PE, (DC+)-(DC-) |
| Status Indication | Green/Red window for operating status and fault indication |

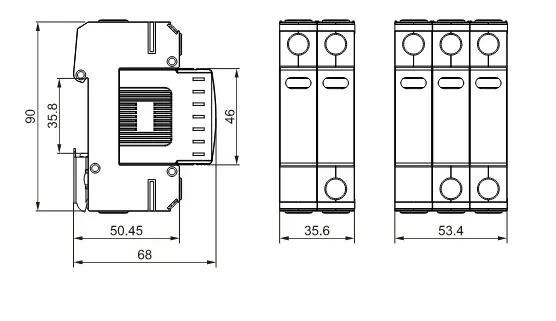

Product Dimension Images
Key Features
- Type 2 / Class II DC SPD specially designed for photovoltaic power supply systems.
- Maximum discharge current up to 40kA and nominal discharge current of 20kA.
- Supports 600VDC, 1000VDC, and 1500VDC PV system protection.
- Pluggable design for easier replacement and maintenance.
- Provides both common-mode and different-mode surge protection.
- Fast response time of ≤25ns for efficient surge suppression.
- Clear green/red status indication for quick inspection.
- Suitable for installation on the solar panel side and inverter/converter side.
Applications
- Solar PV string boxes
- PV inverter DC input protection
- Photovoltaic combiner boxes
- DC distribution cabinets
- Outdoor PV cable lines with long routing distance
- Solar systems requiring surge protection at both ends of the DC power supply line
