ZPU5-T2-40AC Type 2 AC SPD
ZPU5-T2-40AC Type 2 AC surge protective device with Imax 40kA, In 20kA, pluggable design, and 150V to 440V options for low-voltage distribution protection

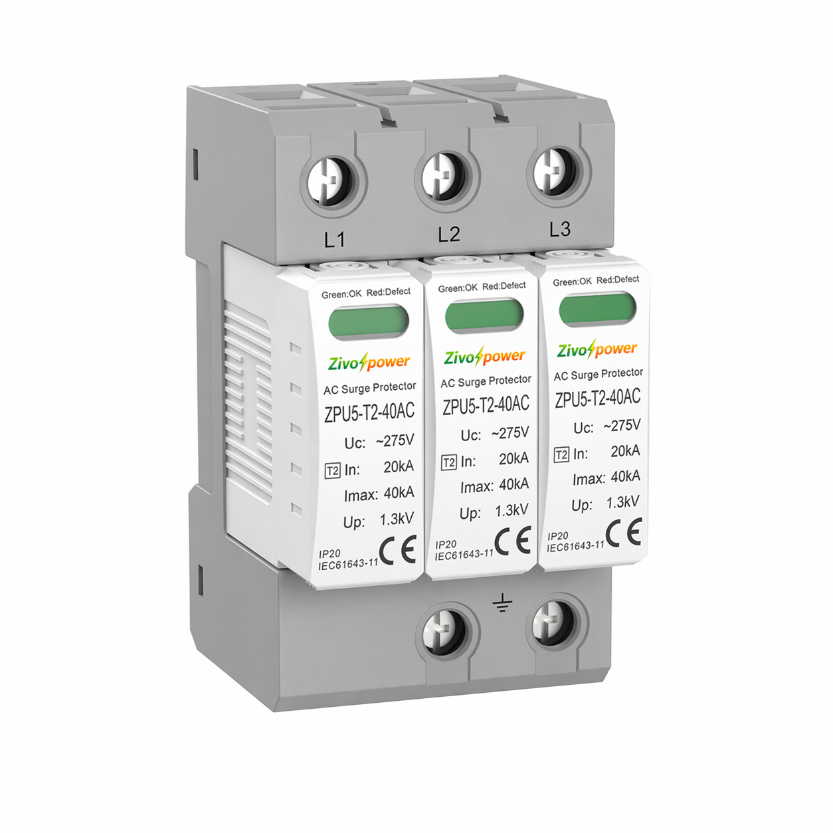

ZPU5-T2-40AC Type 2 AC Surge Protective Device
ZPU5-T2-40AC Type 2 AC surge protective device for low-voltage distribution systems, with Imax 40kA, In 20kA, Class II protection, pluggable design, and voltage options from 150V to 440V.
Product Overview
Zivopower ZPU5-T2-40AC is a Type 2 AC surge protective device designed to protect electrical systems against transient overvoltage caused by fast switching operations or indirect lightning strikes. It is suitable for use in low-voltage distribution panels and can be applied as the second level of protection in systems equipped with Type 1 protectors, or as the first level of protection in applications that are not directly exposed to lightning strikes and do not have an external lightning protection system.
This SPD series supports voltage options of 150V, 275V, 320V, 385V, and 440V, with a maximum discharge current of 40kA and a nominal discharge current of 20kA. The product also supports remote signaling and adopts innovative tripping and breaking technology together with a pluggable housing design for easier maintenance and replacement.

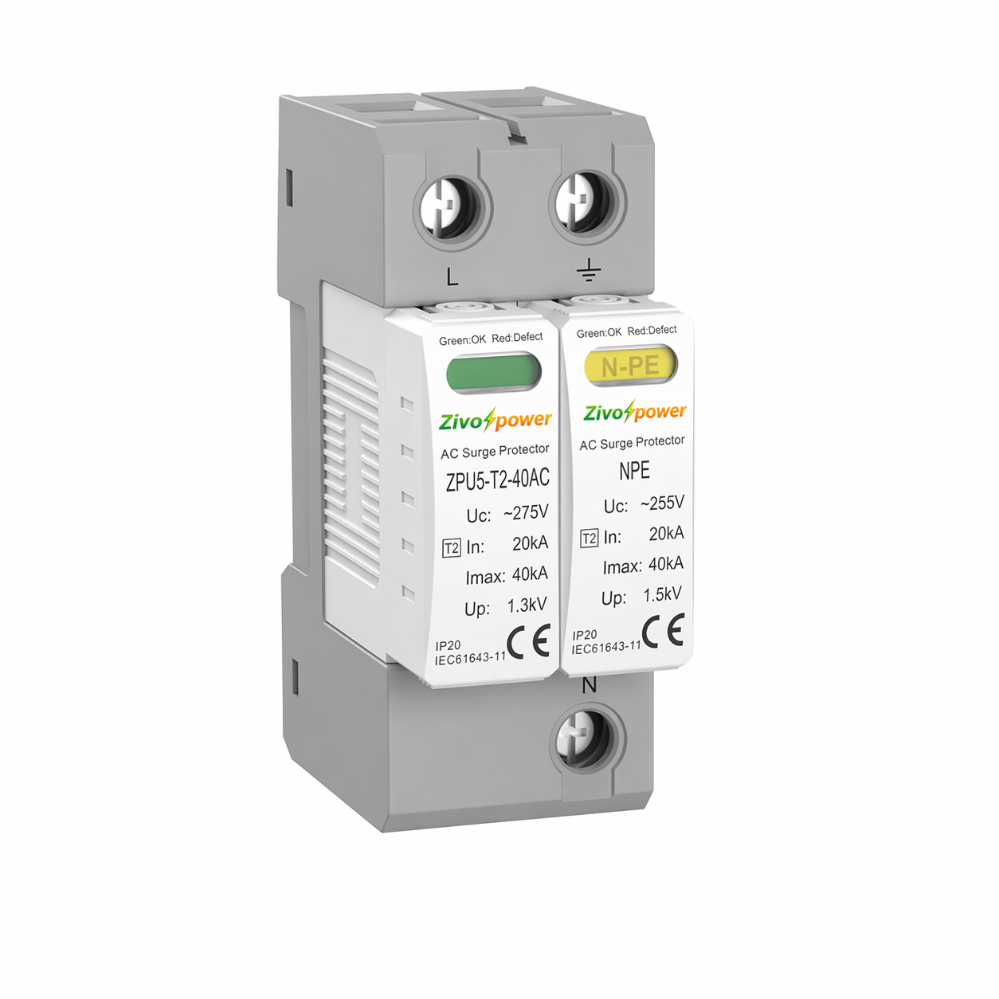

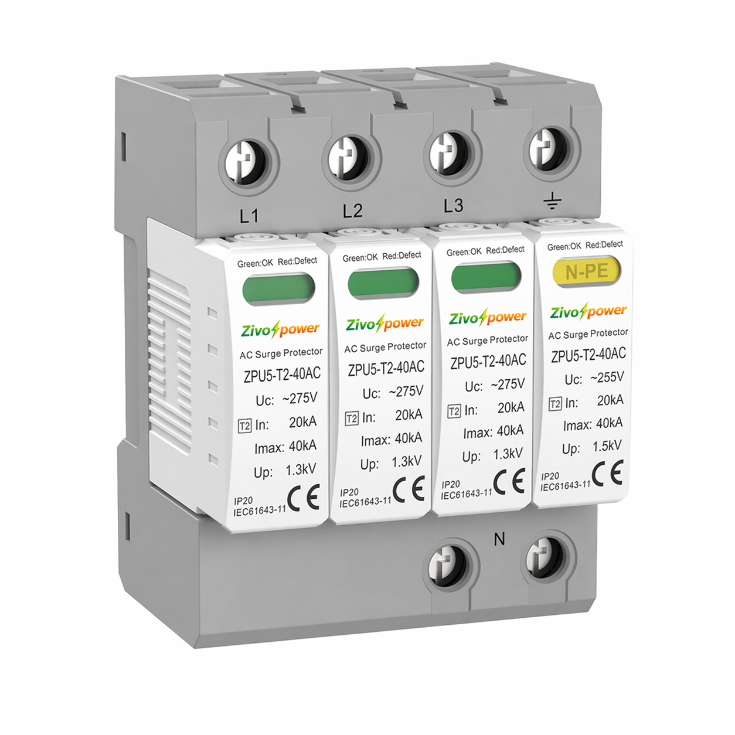

ZPU5-T2-40AC is available in multiple pole configurations, including 1P, 2P, 3P, 4P, 1P+NPE, and 3P+NPE, making it suitable for TN-S, TN-C, and selected TT network systems depending on configuration.
Technical Specifications
| Item | Specification |
|---|---|
| Model | ZPU5-T2-40AC |
| Standard | IEC/EN 61643-11 |
| SPD Classification | Type 2 / Class II |
| No. of Poles | 1P, 2P, 3P, 4P, 1P+NPE, 3P+NPE |
| Network Systems | TN-S, TN-C, TT (only L-N), depending on pole configuration |
| Mode of Protection | L-PE, N-PE (only TN-S), L-PEN, L-N, N-PE |
| Protective Elements | High Energy MOV / High Energy MOV and GDT |
| Maximum Continuous Operating Voltage (L-N) Uc | 150V / 275V / 320V / 385V / 440V |
| Maximum Continuous Operating Voltage (N-PE) Uc | 255V |
| Nominal Discharge Current (8/20μs) In | 20kA |
| Maximum Discharge Current (8/20μs) Imax | 40kA |
| Voltage Protection Level (L-N)/(N-PE) Up | 0.8kV/1.5kV, 1.3kV/1.5kV, 1.5kV/1.5kV, 1.8kV/1.5kV, 2.0kV/1.5kV |
| Voltage Protection Level 5kA Up | 0.6kV / 1.0kV / 1.2kV / 1.4kV / 1.6kV |
| Response Time (L-N)/(N-PE) tA | ≤25ns / ≤100ns |
| Operating Temperature Range Tu | -40℃ to +80℃ |
| Max. Back-up Fuse | 125A gL/gG |
| Operating State / Fault Indication | Green/Red (L-N), Yellow (N-PE) |
| Cross-section Area (Min.)/(Max.) | 4mm² / 35mm² |
| Mounting | 35mm DIN Rail, EN 60715 |
| Enclosure Material | Thermal Plastic UL94-V0 |
| Degree of Protection | IP20 (built-in) |
| Housing | Pluggable Design |
Electrical Performance
| Performance Item | Description |
|---|---|
| Protection Function | Protects AC distribution systems against transient overvoltage and indirect lightning surge |
| SPD Type | Type 2 / Class II AC surge protective device |
| Voltage Range | Available for 150V, 275V, 320V, 385V, and 440V systems |
| Nominal Discharge Current | 20kA (8/20μs) |
| Maximum Discharge Current | 40kA (8/20μs) |
| Voltage Protection Level | Up to 2.0kV/1.5kV depending on voltage rating |
| Response Time | ≤25ns (L-N) / ≤100ns (N-PE) |
| Protection Mode | L-PE, N-PE, L-PEN, L-N depending on configuration |
| Status Indication | Green/Red for L-N and Yellow for N-PE status indication |
| Back-up Fuse Requirement | Max. back-up fuse 125A gL/gG |

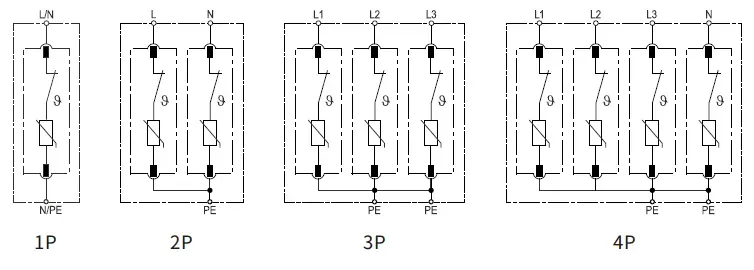

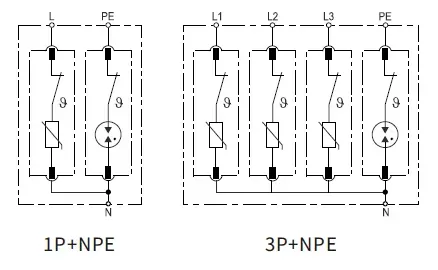

Circuit Diagram

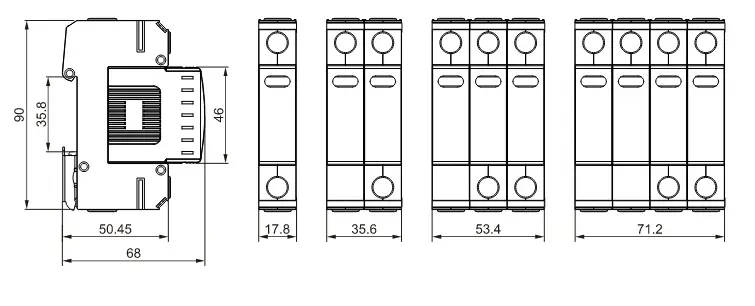

Installation Size
Key Features
- Type 2 / Class II AC SPD for low-voltage distribution protection.
- Maximum discharge current up to 40kA and nominal discharge current of 20kA.
- Available voltage ratings from 150V to 440V.
- Supports multiple pole configurations including 1P, 2P, 3P, 4P, 1P+NPE, and 3P+NPE.
- Pluggable design for easier replacement and maintenance.
- Fast response time with separate L-N and N-PE protection performance.
- Supports remote signaling versions.
- Suitable for second-level protection or first-level protection in applications without external lightning protection systems.
Applications
- AC distribution panels
- Commercial and industrial low-voltage systems
- Building power distribution boards
- Equipment requiring protection against switching surges
- Electrical systems exposed to indirect lightning strike effects
- Panels used together with upstream Type 1 protectors
