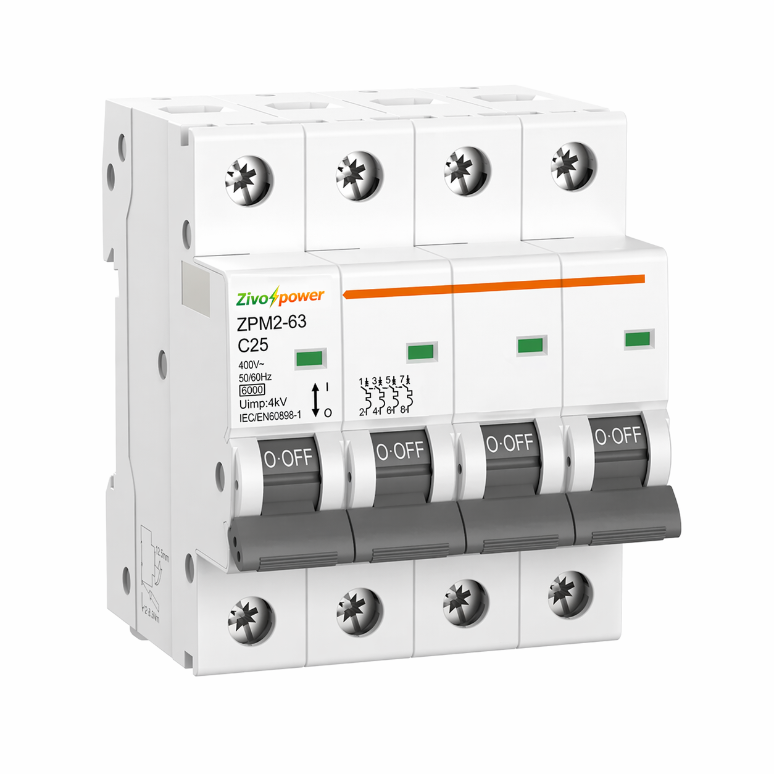

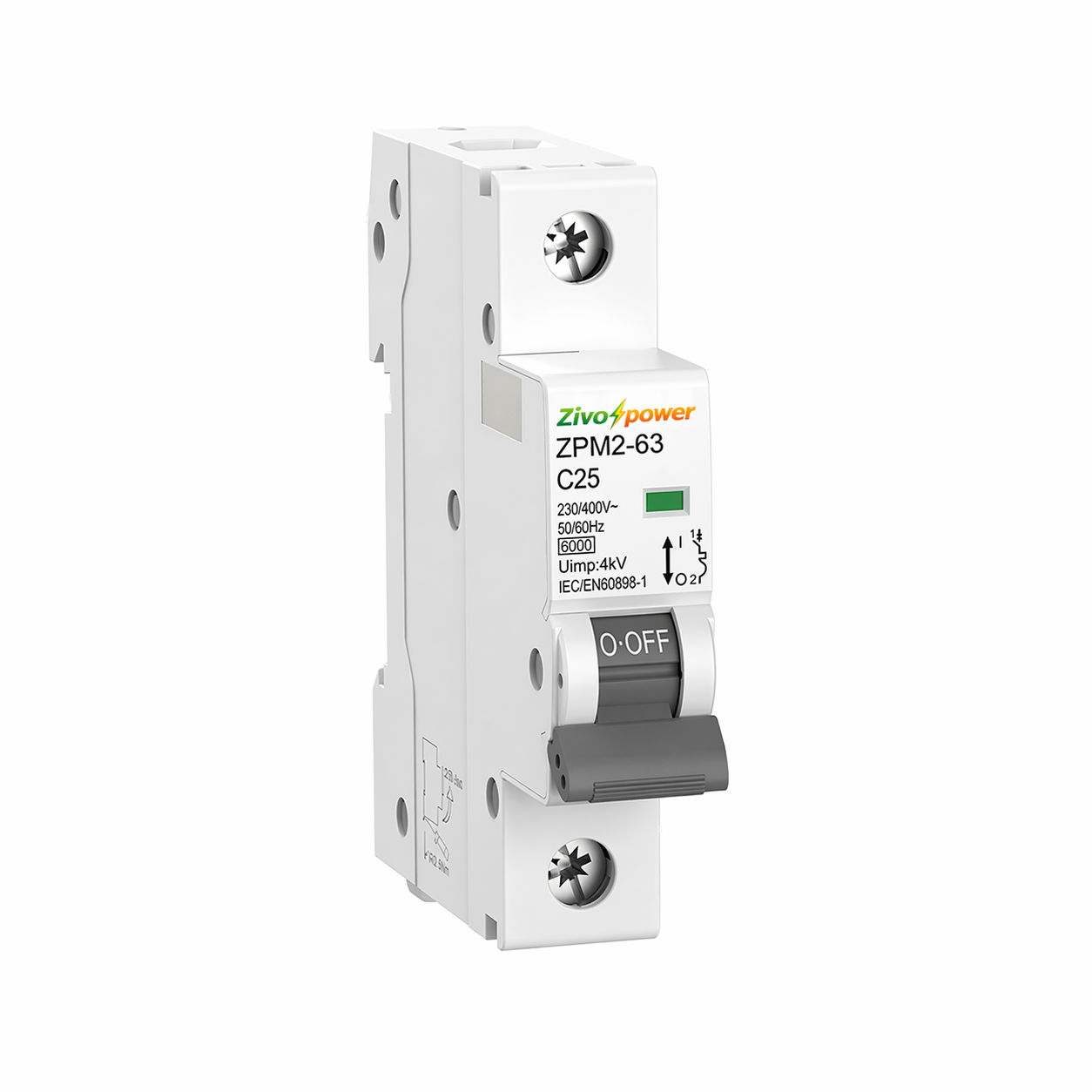

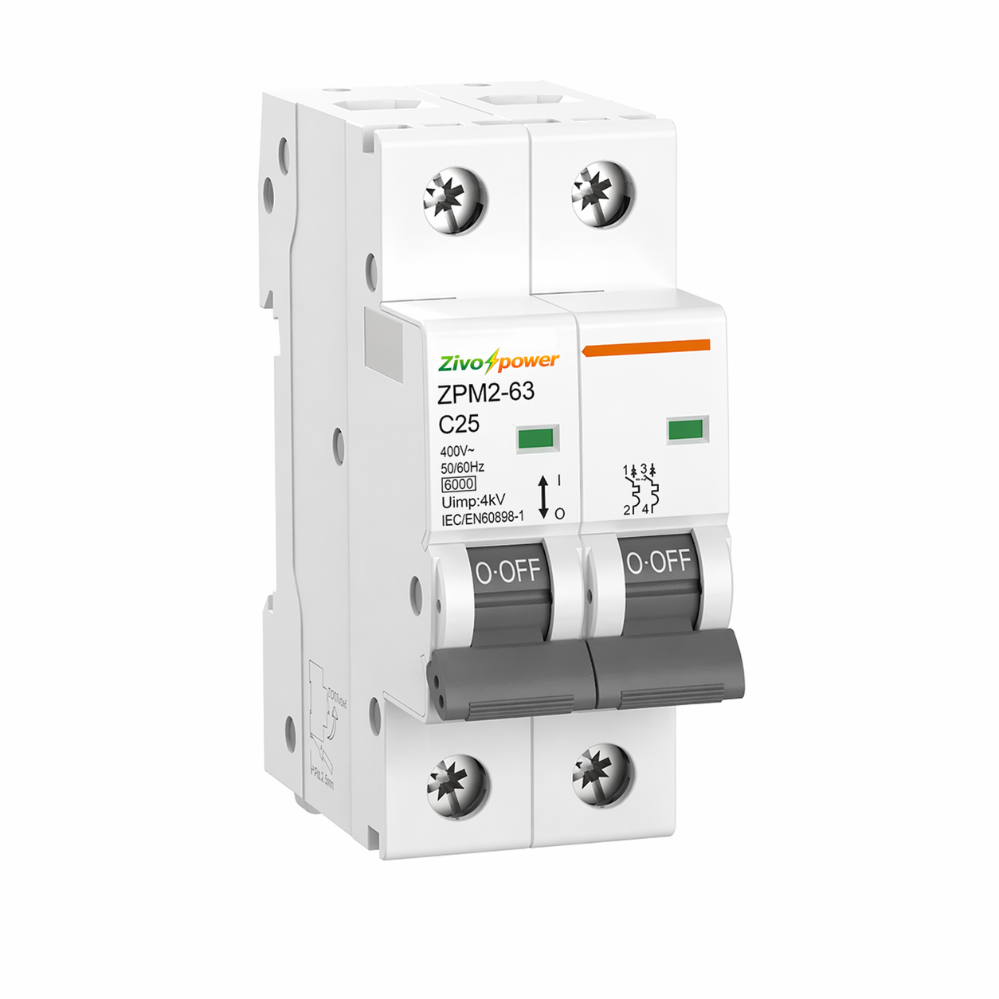

ZPM2-63 6kA AC Miniature Circuit Breaker
ZPM2-63 6kA AC miniature circuit breaker with thermo-magnetic trip, 1A to 63A current range, B C D curves, and 1P to 4P options for overload and short-circuit protection.
ZPM2-63 6kA AC Miniature Circuit Breaker
ZPM2-63 miniature circuit breaker for overload and short circuit protection, with rated current from 1A to 63A, rated voltage 240/415V~, 6kA breaking capacity, and B, C, D tripping curves.
Product Overview
Zivopower ZPM2-63 Miniature Circuit Breaker is designed for reliable overload and short circuit protection in residential, commercial, and light industrial electrical distribution systems. It provides stable thermo-magnetic trip performance with a rated current range from 1A to 63A, making it suitable for a wide range of branch circuit protection applications.
The product is designed with a long service life thanks to its energy-storage operating mechanism, while the enclosure and functional parts are made from high-quality plastics with flame-retardant, heat-resistant, and impulse-proof characteristics. It also provides higher current-limiting capacity, making it a cost-effective MCB solution.
With pole options including 1P, 1P+N, 2P, 3P, 3P+N, and 4P, plus B, C, and D tripping curves, this breaker is suitable for different load characteristics and installation requirements. The product is designed for 35mm DIN rail mounting and supports connection from both top and bottom.
Technical Specifications
| Item | Specification |
|---|---|
| Model | ZPM2-63 |
| Standard | IEC/EN60898-1 |
| Protection | Overcurrent and short circuit |
| Type of Trip | Thermo-magnetic |
| Rated Current In | 1, 2, 3, 4, 5, 6, 10, 16, 20, 25, 32, 40, 50, 63A |
| Poles | 1P, 1P+N, 2P, 3P, 3P+N, 4P |
| Rated Voltage Ue | 240/415V~ |
| Insulation Voltage Ui | 500V |
| Rated Frequency | 50/60Hz |
| Rated Breaking Capacity | 6,000A |
| Energy Limiting Class | 3 |
| Rated Impulse Withstand Voltage (1.2/50) Uimp | 4,000V |
| Dielectric Test Voltage at Ind. Freq. for 1 min | 2kV |
| Thermal Release Characteristic | (1.13-1.45) x In |
| Magnetic Release Characteristic | B:(3-5) x In, C:(5-10) x In, D:(10-20) x In |
| Electrical Life | 4,000 Cycles |
| Mechanical Life | 10,000 Cycles |
| Contact Position Indicator | Yes |
| Protection Degree | IP20 |
| Ambient Temperature | -5℃~+40℃, Max. 95% humidity |
| Ambient Air Temperature (overview) | -25...+40 ºC |
| Terminal Connection Type | Cable / Pin-type busbar |
| Max. Terminal Size for Cable | 25mm² |
| Max. Tightening Torque | 2.5N.m |
| Installation | Mounting on 35mm Din rail |
| Connection | From top and bottom |
| Certificates | CB, CE, UKCA, Inmetro |
Electrical Performance
| Performance Item | Description |
|---|---|
| Protection Function | Provides overload and short-circuit protection for AC circuits |
| Trip Mechanism | Thermo-magnetic trip design for reliable circuit interruption |
| Rated Current Range | Available from 1A to 63A |
| Rated Voltage | 230/400V~ to 240/415V~ listed on the product page, with technical data showing 240/415V~ |
| Breaking Capacity | Rated breaking capacity up to 6,000A |
| Impulse Withstand Voltage | 4,000V impulse withstand performance |
| Dielectric Strength | 2kV dielectric test voltage |
| Tripping Curves | B, C, and D curves for different load characteristics |
| Energy Limiting Class | Class 3 current limiting performance |
| Service Life | Electrical life 4,000 cycles and mechanical life 10,000 cycles |

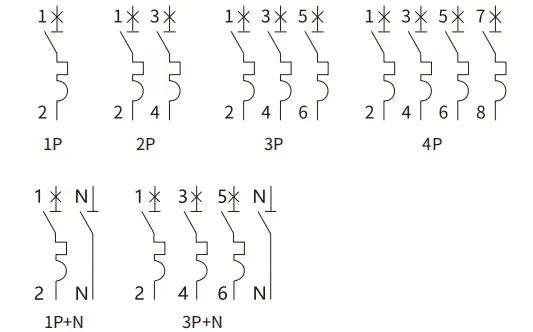

Wiring Diagram

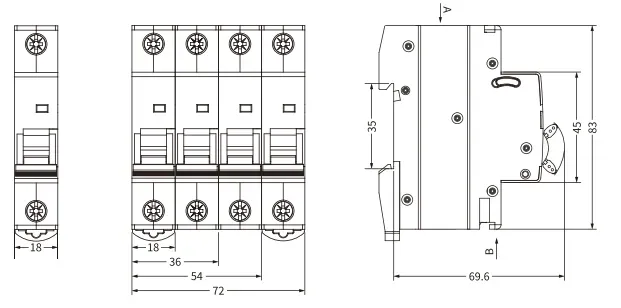

Installation Dimension
