Solar MC4 Tool Kit

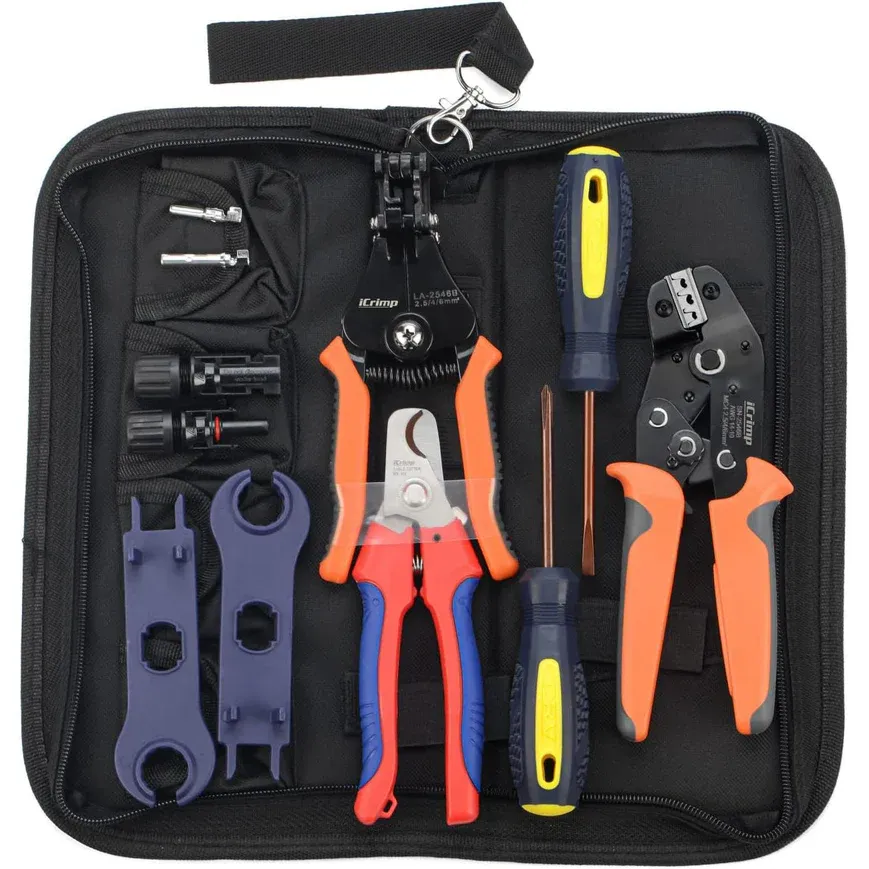

Solar MC4 tool kit including wire stripper, crimping tool, cable cutter, screwdrivers, MC4 spanners, and MC4 connectors for photovoltaic cable preparation and connector assembly.
Solar MC4 Tool Kit
Solar MC4 tool kit including wire stripper, MC4 crimping tool, cable cutter, screwdrivers, MC4 spanners, and one pair of MC4 connectors, designed for efficient solar cable preparation, crimping, cutting, and connector assembly.
Product Overview
Zivopower Solar MC4 Tool Kit is a practical installation tool set designed for photovoltaic cable preparation and MC4 connector assembly. This kit includes a solar wire stripper, MC4 crimping tool, cable cutter, screwdrivers, MC4 spanners, and one pair of MC4 connectors, making it suitable for solar cable installation, maintenance, and field service work.
The wire stripper is designed for 2.5/4/6mm² solar cables and supports reliable stripping of double-layer insulated cables. The crimping tool is built with hardened steel construction and accurate crimping molds to ensure stable crimping quality. The cable cutter is suitable for cutting copper and aluminum cables with clean and smooth cutting performance, without crushing or deformation.
This solar tool kit is a convenient choice for installers, distributors, EPC teams, and maintenance technicians who need a compact and efficient set of tools for PV connector termination and solar cable handling.

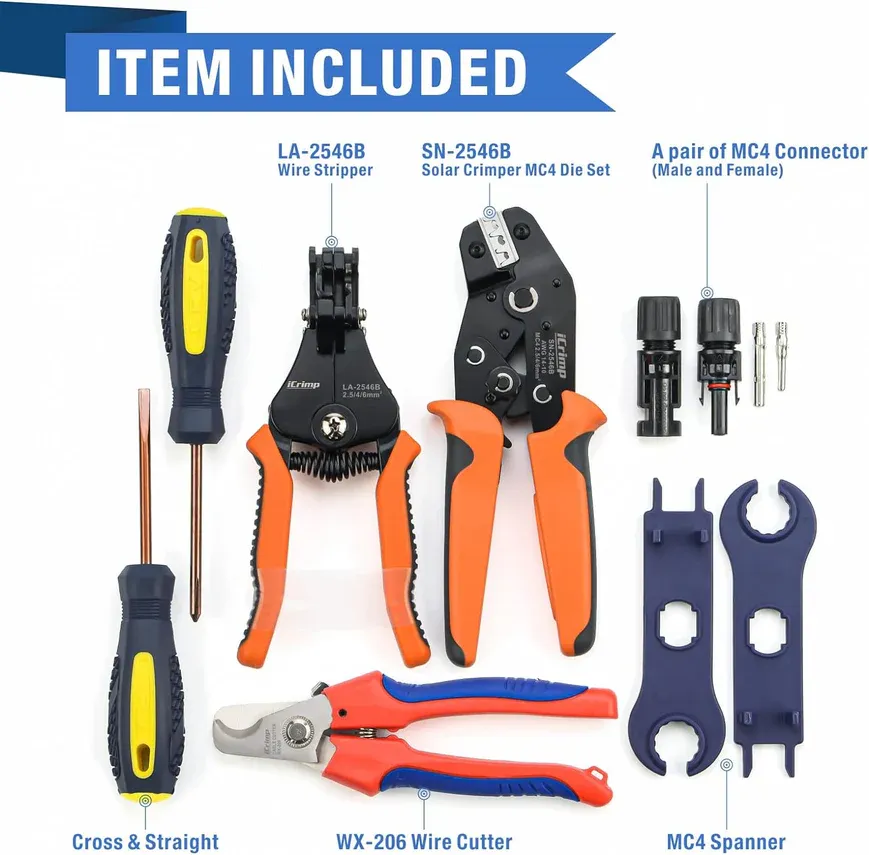

Kit Includes
- 1 x Wire Stripper
- 1 x MC4 Crimping Tool with MC4 die set
- 1 x Cable Cutter
- 2 x Screwdrivers (Cross and Straight)
- 2 x MC4 Spanners

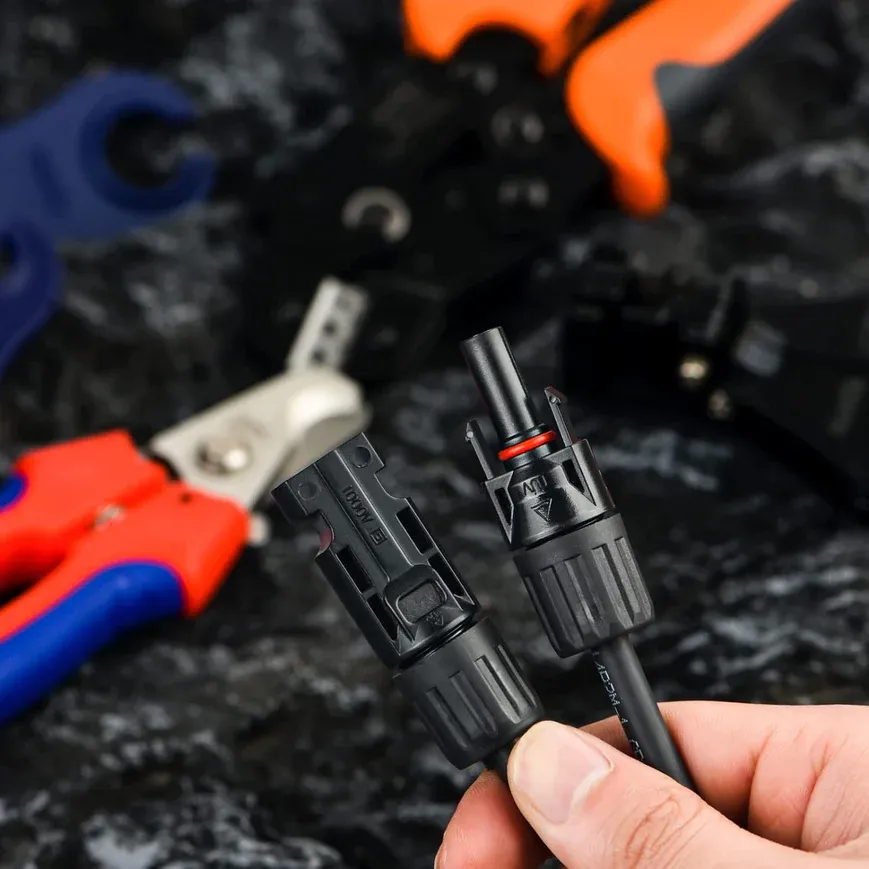

- 1 Pair of MC4 Connectors (Male and Female)

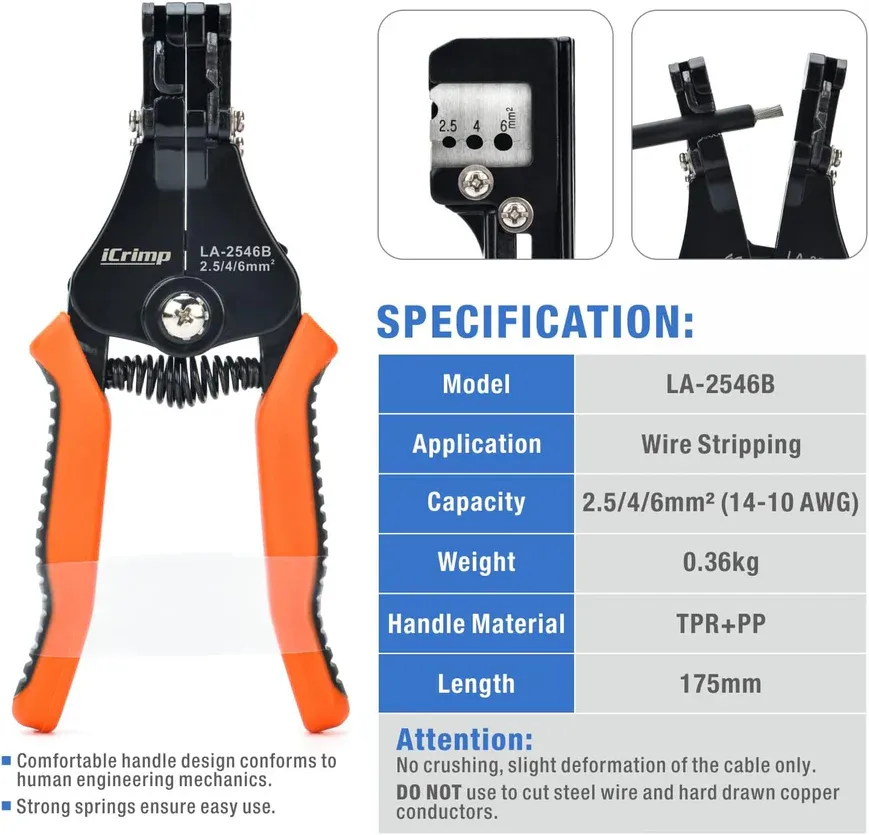

Wire Stripper Specifications
| Item | Specification |
|---|---|
| Type | Mini Pliers |
| Material | Carbon Steel |
| Application | Wire Stripper, Solar Cables |
| Stripping Range | 2.5 / 4 / 6mm² (14-10AWG) |
| Length | 18cm |
| Weight | 0.32Kg |
| Special Feature | Suitable for double layer insulated cables |
| Design Feature | Adjustable stopper / positioner |
| Stripping Feature | Adjustable length stop |

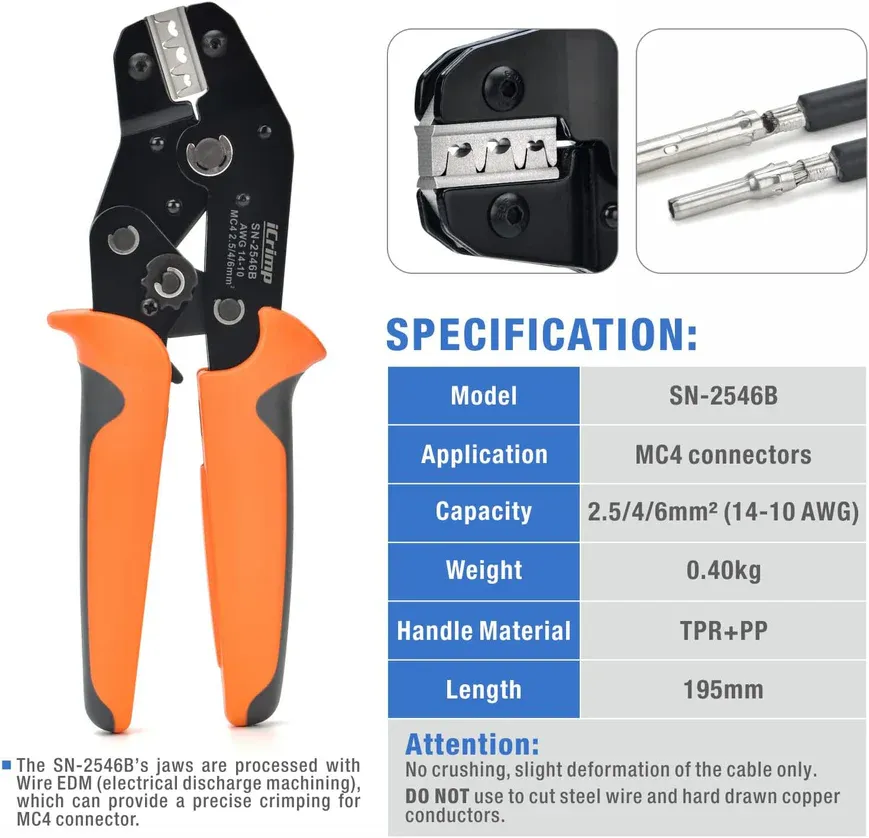

MC4 Crimping Tool Specifications
| Item | Specification |
|---|---|
| Color | Blue, Orange |
| Item Weight | 0.95 Pounds |
| Item Dimensions (L x W x H) | 4.72 x 3.15 x 0.39 inches |
| Handle Material | Thermoplastic Rubber |
| Construction | Hardened and durable steel construction |
| Operation | Easy to operate with plier-style crimping action |
| Crimping Quality | Accurate crimping molds and complete locking mechanism |
| Ergonomic Feature | Human engineering handle design for improved grip and reduced fatigue |
| Force Transmission | High transmission of force through lever control |

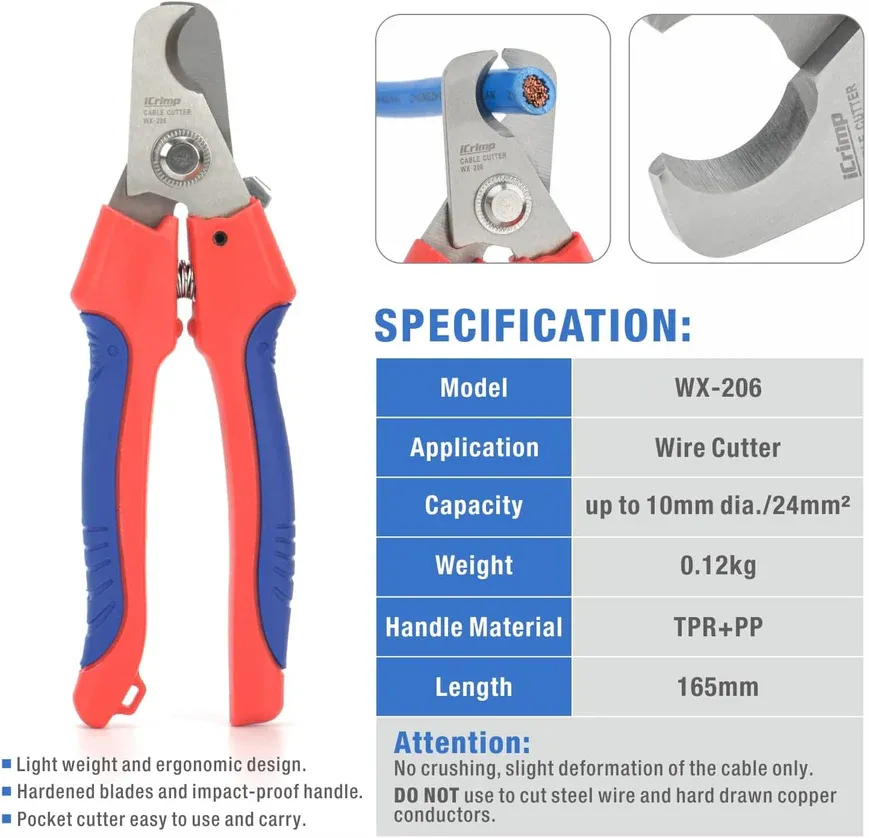

Cable Cutter Specifications
| Item | Specification |
|---|---|
| Material | Alloy Steel |
| Color | Copper |
| Handle Material | Alloy Steel |
| Specific Use | Cutter |
| Purpose | For cutting copper and aluminum cables, single conductor as well as multiple stranded cable wires |
| Cutting Result | Clean and smooth cut without crushing or deformation |
| Capability | Cuts up to 4AWG aluminum and 3AWG copper |
| Not Intended For | Steel wire, ACSR, or hard drawn copper conductors |
| Quality Feature | Precision ground, hardened blades for easier cutting |
| Handle Feature | Comfortable multi-component handles |
| Safety Feature | Pinch guard prevents fingers from being pinched |
Key Features
- Complete solar installation tool kit for stripping, crimping, cutting, and connector assembly.
- Wire stripper supports 2.5/4/6mm² solar cables and double-layer insulated cables.
- MC4 crimping tool with accurate crimping molds for reliable connector termination.
- Cable cutter delivers clean and smooth cuts without crushing or deformation.
- Includes MC4 spanners and one pair of MC4 connectors for convenient field work.
- Portable tool kit suitable for solar installers and maintenance technicians.
- Ergonomic handle design helps reduce working fatigue.
- Durable steel and carbon steel construction for long service life.
Applications
- Solar cable stripping and preparation

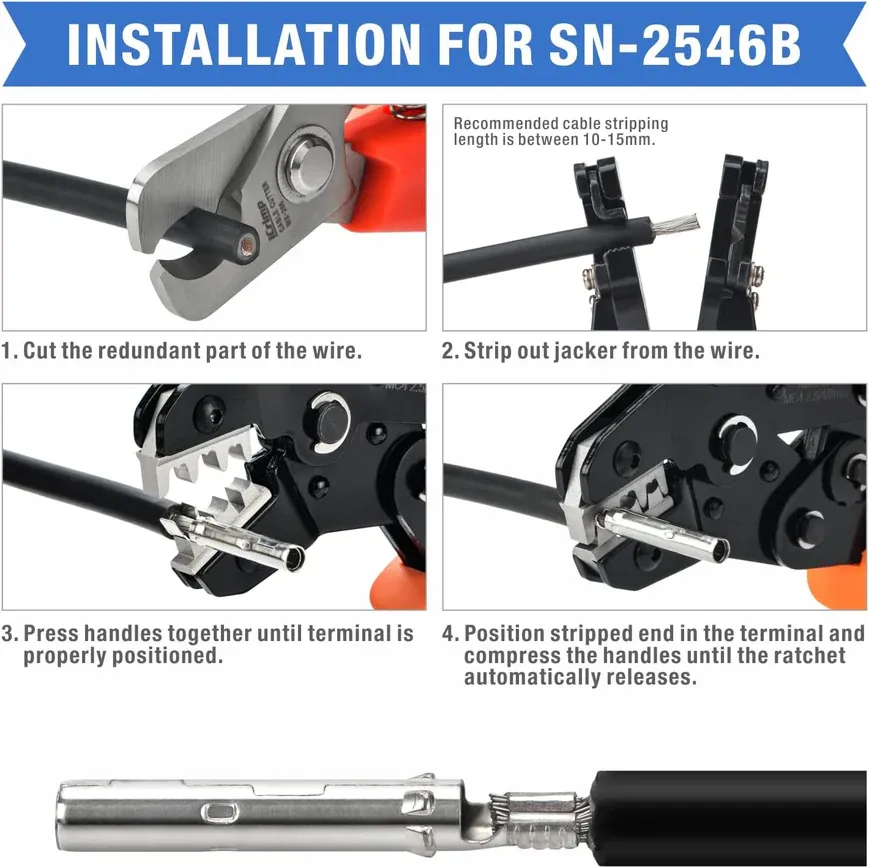

- MC4 connector crimping and assembly
- Photovoltaic installation and maintenance
- Solar field service work
- Residential and commercial PV projects
- Installer tool kits for solar connection work
Why Choose Zivopower
Zivopower provides practical and reliable solar tools and connection products for PV installation, maintenance, and field service. We focus on useful specifications, stable quality, and efficient export support to help customers source dependable solar installation tools with less risk.
- Professional supplier of solar connection tools and accessories
- Clear specifications for easier purchasing decisions
- Stable quality control before shipment
- Suitable for installers, distributors, and EPC teams
- OEM and customized service available
- Responsive support for international markets
Packaging and Delivery
Packaging: Standard export carton packaging according to kit configuration and quantity.
Outer Protection: Protective packing suitable for sea, air, and land transportation.
Delivery Method: Sea shipment, air shipment, express, or courier according to quantity and urgency.
Lead Time: Depends on order quantity and packaging requirements.
Customization: Support for OEM packaging, private label, and customized kit configuration.
FAQ
What is included in this solar tool kit?
The kit includes a wire stripper, MC4 crimping tool, cable cutter, two screwdrivers, two MC4 spanners, and one pair of MC4 connectors.
What cable sizes can the wire stripper handle?
The wire stripper is designed for 2.5 / 4 / 6mm² solar cables, equivalent to 14-10AWG.
Is the stripper suitable for double-layer insulated solar cables?
Yes. It is specially designed for reliable stripping of double-layer insulated cables.
What is the rated current range covered by the connector crimping kit applications?
This kit is intended for MC4 connector assembly and general solar cable termination work rather than a specific current-rated electrical connector family.
What materials are used for the crimping tool and cutter?
The crimping tool uses hardened steel construction, while the cable cutter is made of alloy steel and the stripper uses carbon steel.
Can the cable cutter cut steel wire?
No. It is not intended for cutting steel wire, ACSR, or hard drawn copper conductors.
Is this tool kit suitable for portable field work?
Yes. The kit is designed for easy carrying, storage, and practical solar installation work.
Can Zivopower provide OEM service?
Yes. Zivopower supports OEM service including packaging customization, logo printing, and kit configuration adjustment.
