2/0 AWG Battery Cable with Tin-Plated Copper Lug Terminals
This 2/0 AWG battery cable assembly is designed for B2B supply in automotive,
energy storage, marine, RV, solar, inverter, welding, and other high-current DC power applications.
It combines a flexible copper stranded conductor, durable EPDM insulation, dual wall adhesive-lined
heat shrink, and heavy-duty tin-plated copper lugs for reliable electrical performance and long service life.
Available in black or red, this product is suitable for distributors, wholesalers, OEM customers,
and project buyers requiring bulk supply or customized cable assembly solutions.
Key Features
- Made in China for OEM, ODM, and bulk supply
- 100% copper conductor for efficient current transfer
- Flexible stranded construction for easier routing and installation
- Heavy-duty tin-plated copper lug terminals
- Closed-end lug design helps reduce moisture entry
- Dual wall adhesive-lined heat shrink for improved sealing and insulation
- EPDM insulation with resistance to abrasion, water, oil, grease, and flame
- Suitable for a wide range of battery and DC power cable applications
- Available in black or red
- Custom lengths and lug configurations available

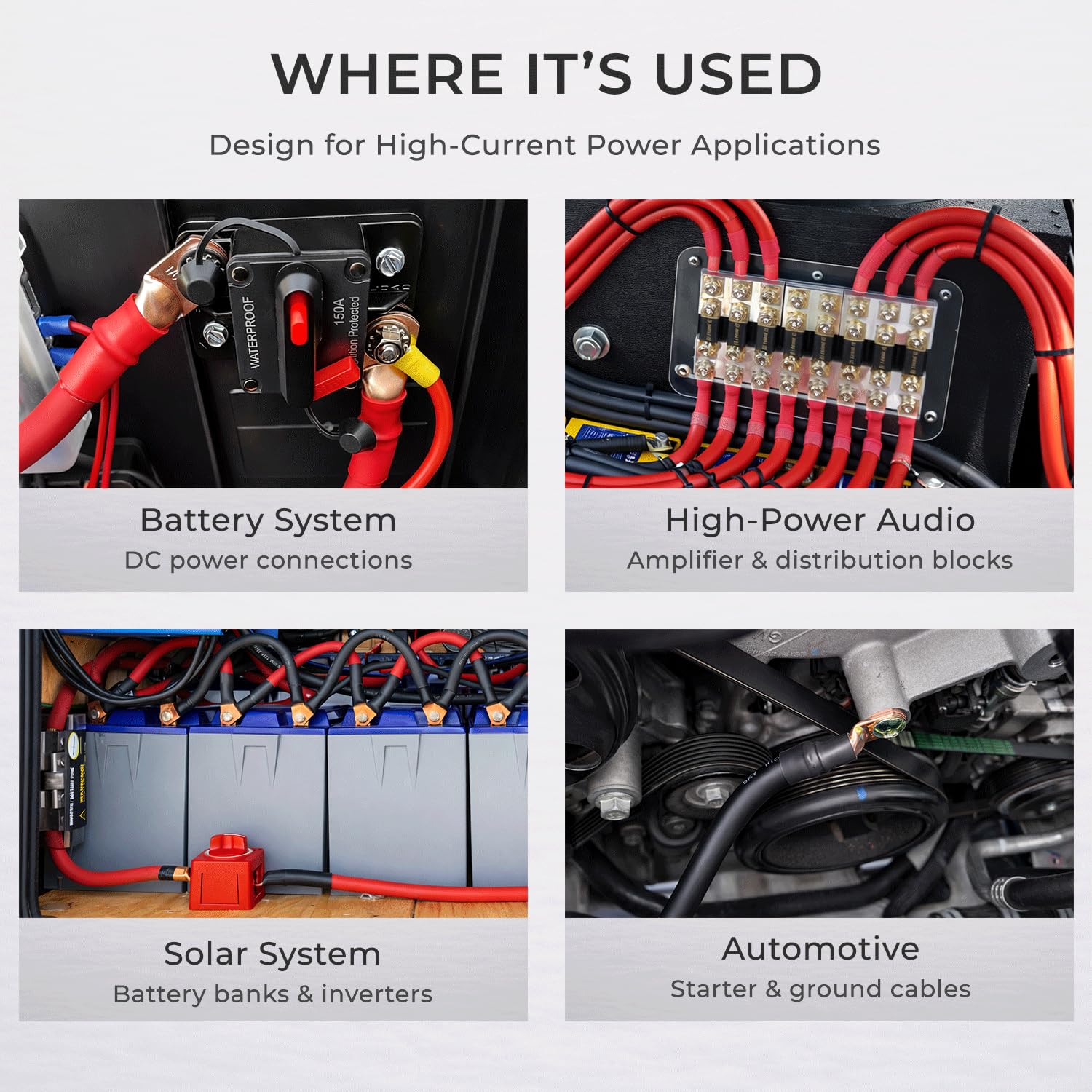

Applications
- Automotive battery cable assemblies
- Electric vehicle conversion systems
- RV electrical systems
- Golf cart battery connections
- Marine battery and power systems
- Inverter cable assemblies
- Solar energy storage and DC systems
- Welding cable applications
- Trolling motors
- Other industrial and mobile power applications
Technical Specifications
| Product Name |
2/0 AWG Battery Cable with Tin-Plated Copper Lug Terminals |
| Country of Origin |
Made in China |
| Conductor Size |
2/0 AWG |
| Conductor Material |
100% Copper |
| Stranding |
1,196 |
| Maximum Voltage |
600V |
| Maximum Amps |
300A |
| Insulation Material |
High-grade EPDM |
| Insulation Thickness |
0.065 in |
| Nominal Outside Diameter |
0.526 in |
| Weight |
0.43 lb/ft |
| Temperature Range |
-50°C to 105°C (-58°F to 221°F) |
| Heat Shrink Color |
Black |
| Heat Shrink Type |
Dual Wall Adhesive Lined |
| Lug Material |
Tin-Plated Copper |
| Available Colors |
Black / Red |
| Available Lug Hole Sizes |
5/16", 3/8", 1/2" |
| Resistance |
Cuts, Tears, Abrasion, Water, Oil, Grease, and Flame |
| Compliance |
RoHS Compliant; Meets SAE J1127 and ASTM B-172 Standards |
Customization Options
Customized production is available based on cable length, cable color, lug hole size,
lug combination, and packaging requirements for wholesale or OEM supply.
B2B Supply
This product is supplied mainly for distributors, wholesalers, importers, OEM brands,
system integrators, and project customers. Bulk orders and private label cooperation are supported.
